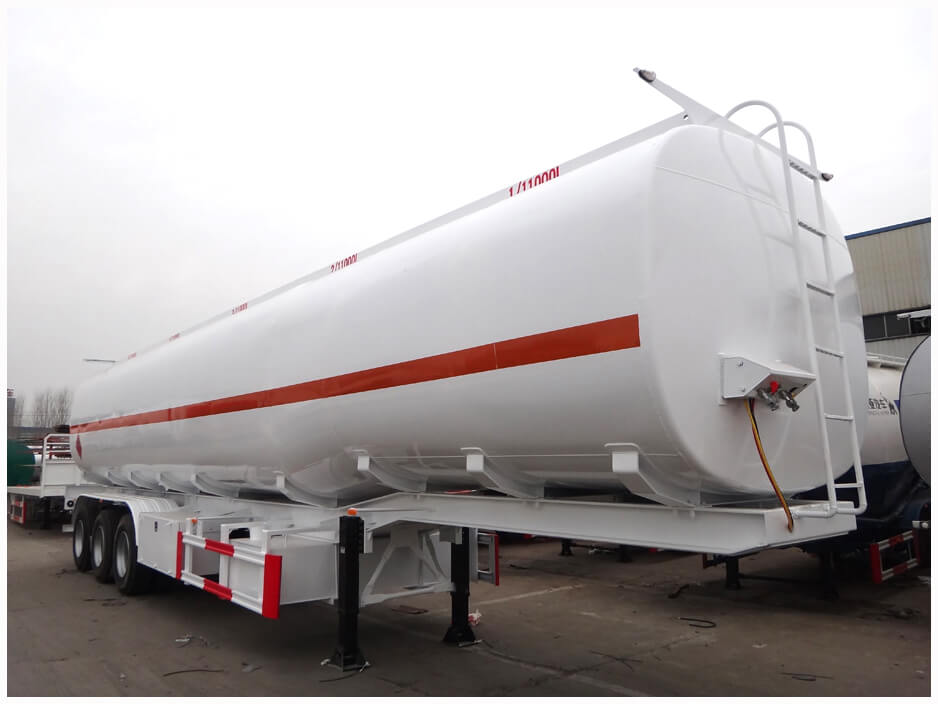

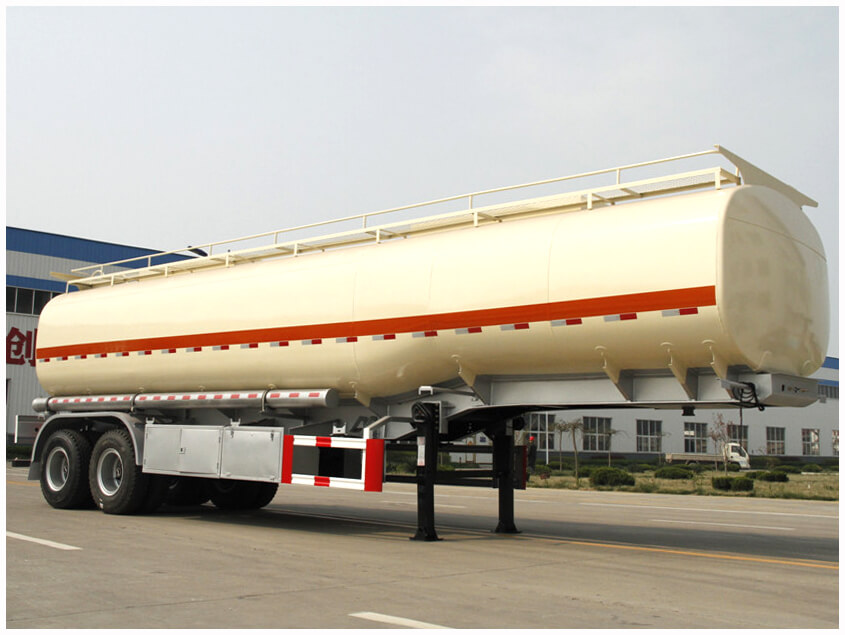

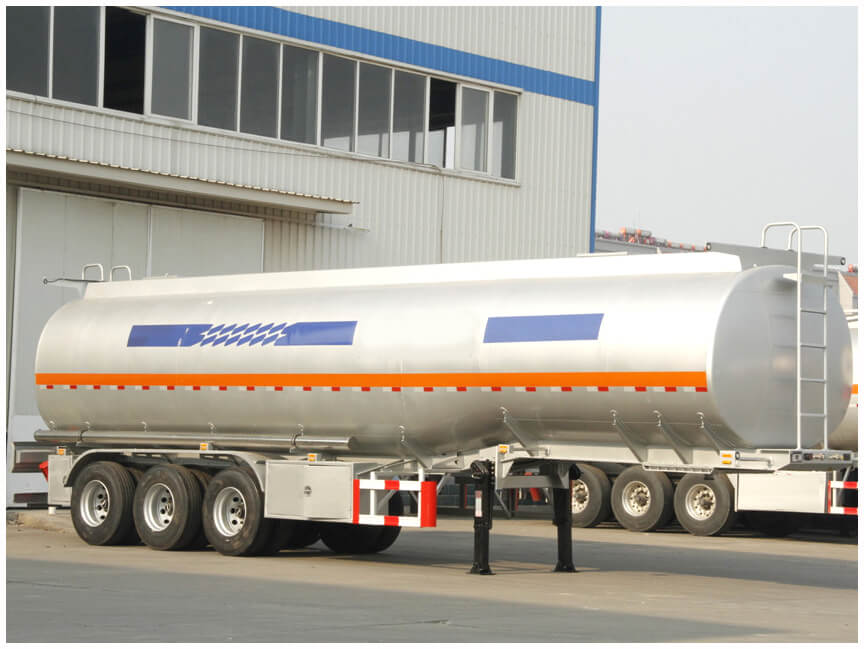

Fuel Tank Semi Trailer

Overall Dimension:13500x2500x3900 mm

Tank Capacity:30CBM - 60CBM

Axle Number:2 Axles / 3 Axles

Kingpin Size:2.0 Inch / 3.5 Inch

Tel:0086-531-87566188

Download BrochurePrint
  • Professional Service, Competitive Price.
  • Powerful Engine, Advanced Technologies.
  • Stable and Reliable Quality, Great Performance.

Model

Fuel Tank Semi Trailer

Dimension

13500 x 2500 x 3990mm

Curb Weight

11.5Tons

Tank Capacity

60,000 liters + 6% expansion approx

Tank Body

Tank shell thickness 5mm, front and rear cover thickness 6mm

Compartments

1 to 7 compartments, based on requirements

Baffles

5mm thick baffles designed to permit the easy flow of fuel inside the tank

Manholes

Each compartment is equipped with 500mm manhole cover fitted with bolts and nuts

Discharge

Top loading through manholes, discharged by gravity through ball valves

Discharge Pipes

4 rubber hose, 2units, 6 metre/each

Kingpin

JOST 2.0 / 3.5 Inch

Landing Gear

JOST 28 Tons

Main Beam

Height 500mm, Top flange 14mm, Web 8mm, Bottom flange 16mm

Side Beam

16mm steel channel

Suspension

America type mechanical suspension

Spring Leaf

90mm x 13mm x 10 layers

Axles

FUWA Brand, 13Tons

Tires

12.00R20 or 315/80R22.5

Brake Chamber

T30/30 + T30 spring brake chamber, one piece of 45L air tanks

Electrical

24V

Tool Box

1000 x 500 x 500 mm
