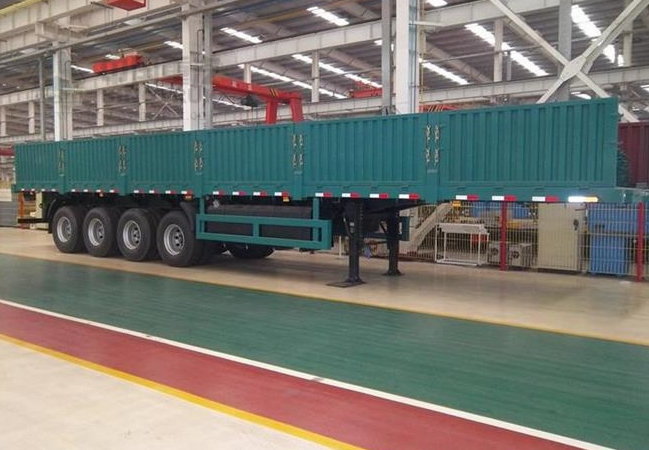

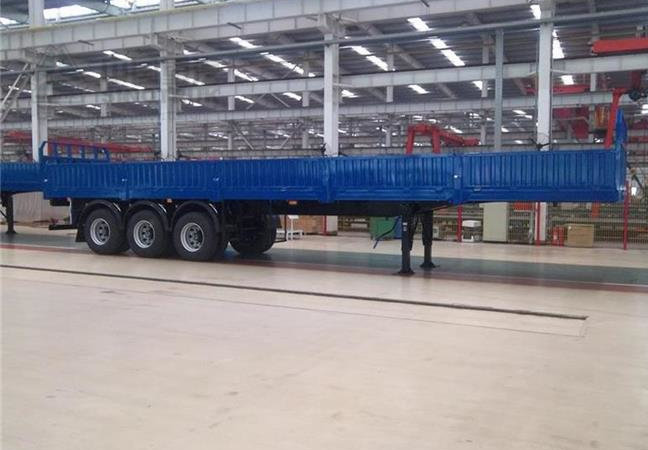

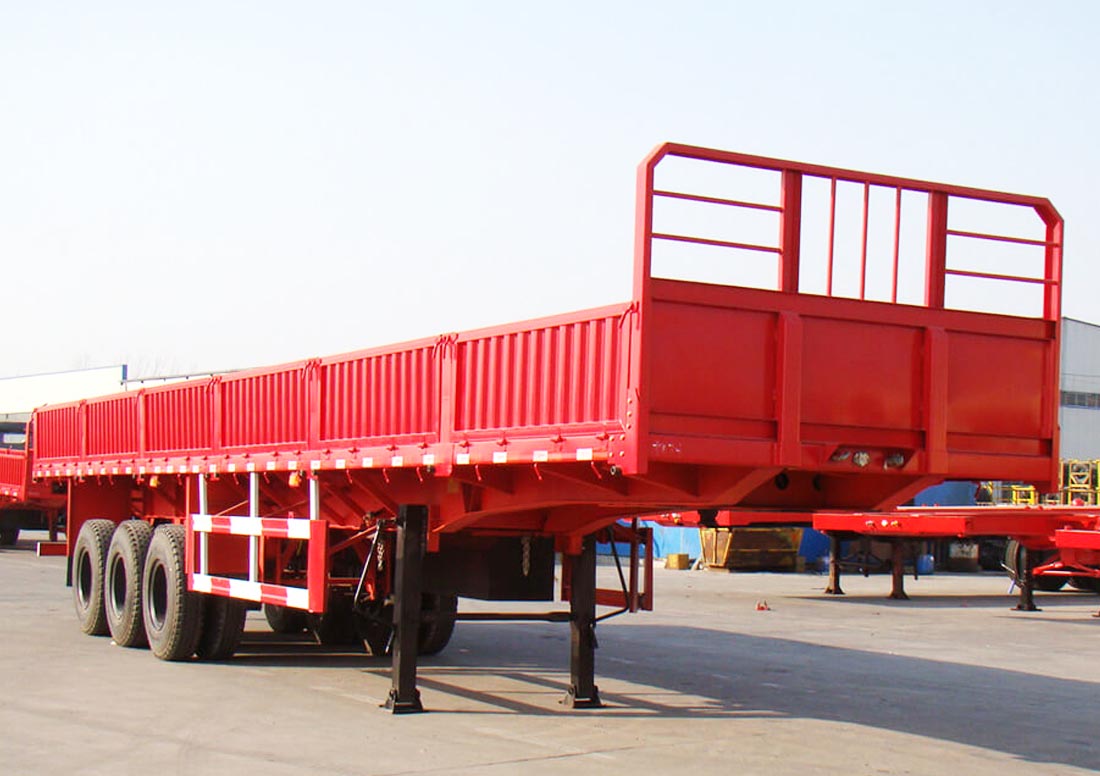

Cargo Semi trailer

Loading Capacity:20Tons / 40 Tons / 60 Tons

Overall Dimension:12500x2500x3100 mm

Axle Number:2 Axles / 3 Axles

Kingpin Size:2.0 Inch / 3.5 Inch

Tel:0086-531-87566188

Download BrochurePrint
  • Professional Service, Competitive Price.
  • Powerful Engine, Advanced Technologies.
  • Stable and Reliable Quality, Great Performance.

Model

sinotruk howo Cargo Semi trailer

Dimension

12500 x 2500 x 3100mm

Curb Weight

10Tons

Loading Capacity

60 Tons

Cargo Body

Sidewall removable, height 800mm; Plateform 3mm, checkered

Twist Lock

8 sets, suitable to accept 2x20 or 1x40 container, Manual operation

Kingpin

JOST 2.0 / 3.5 Inch

Landing Gear

JOST 28 Tons

Main Beam

Height 500mm, Top flange 14mm, Web 8mm, Bottom flange 16mm

Side Beam

18mm steel channel

Suspension

America type mechanical suspension

Spring Leaf

90mm x 13mm x 10 layers

Axles

FUWA Brand, 13Tons or 16Tons

Tires

12.00R20 or 315/80R22.5

Brake Chamber

T30/30 + T30 spring brake chamber, one piece of 45L air tanks

Electrical

24V

Tool Box

1000 x 500 x 500 mm
